10W IP65 COB LED Courtyard Street Light With 90LM/W Both For Wall Packing And Pole Packing
Quick Detail:
- 10W COB LED courtyard Street Light
- Input: AC 90V-264V, 50/60Hz
- Luminous Flux: 1000 Lm
- CRI: >70
- Brand chip: Bridgelux
- LED Driver: Meanwell
- Adjustable: -15 to +15
- IP:65
- CE, RoHS certificated
Description:
Excellent manufacturers of LED Courtyard street light in china, Ming Feng Come out COB LED Courtyard Street series in 2014. These LED street lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from Bridgelux , the street light attains over 90 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.
COB LED Courtyard Street embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.
Specifications:
| Item | MF-CS010W |
| Input voltage | 90-264Vac 50Hz/60Hz |
| LED Power | 10W |
| Rated Power | 13W |
| Delivered Flux(Tj80°c) | 1000lm |
| IP Rating | IP65 |
| Luminous Efficiency | 90 LM/W |
| Color temperature | 3000K-6500K |
| LED Chip | Bridgelux |
| LED Driver | Meanwell |
| Color Rendering Index | Ra>70 |
| Power Factor | >0.9 |
| Lifespan | ≥50,000hrs |
| Operation Environment | Temperature:-40°C~50°C/Humidity:10%~95% |
| Material | Aluminum Alloy |
| Product Size(mm) | 402(L)*149(W)*88(H) |
| Packing Size(mm) | 460(L)*390(W)*390(H)/pcs |
| Net Weight | 1.2Kg |
| Certificate | CE/RoHS |
| Warranty Period | 5 years |
Competitive Advantage:
1. The light source use 100M/W Bridgelux chip, the luminaire reach 85M/W
2. Beautiful appearance for the shell
3. High efficiency driver system from Meanwell
4. The product is suitable for use in the streets, walkways, park, garden light, etc
5. Warranty:5 years
6. Could be both for wall packing and pole packing.
Light Distribution Curve:
Product Size:

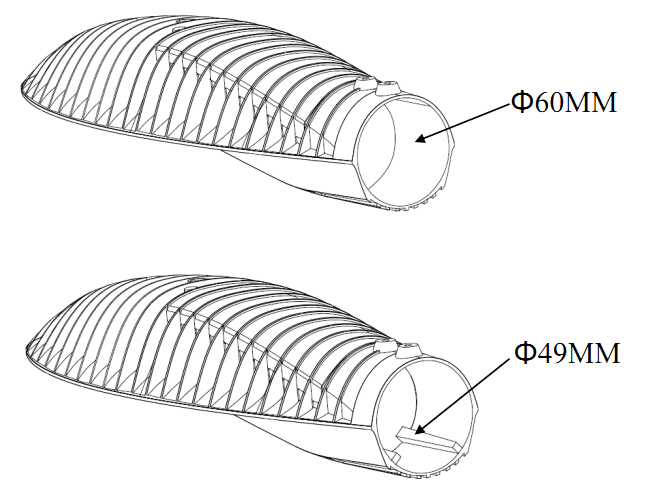

Installation
Applications:
The product is suitable for use in the streets, walkways, park, garden light, etc.
