90W 1-10V dimmable LED Roadway Lights THD <17% IP66 Photocell available
Description:
Module dimmable LED Roadway lights embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.
The Module led street lights source use 120M/W SAMSUNG/ , the luminaire reach 110LM/W, High efficiency driver system from Meanwell, Power box free tool to open, easy installation and maintenance, photocell function for optional, adjustable juction available, DLC, CE, GS ,Rohs certificated, provide 5 years warranty. Wildly use for Free way, Main road, Secondary main road and so on.
These LED roadway lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from , the street light attains over 90 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.
Specifications:
| Item | MF-ST090 |
| Input voltage | 85-265Vac 50Hz/60Hz |
| LED Power | 90W |
| Rated Power | 90±5W |
| Delivered Flux(Tj80°c) | 11700 lm |
| IP Rating | IP66 |
| LED QTY | 72 pcs |
| Color temperature | 3000K-6500K |
| LED Chip | Samsung/ |
| LED Driver | Meanwell |
| Color Rendering Index | Ra>80 |
| Power Factor | >0.9 |
| Lifespan | ≥50,000hrs |
| Operation Environment | Temperature:-40°C~50°C/Humidity:10%~95% |
| Material | Aluminum Alloy |
| Product Size(mm) | 481(L)*298(W)*79(H) |
| Net Weight | 6.0Kg |
| Certificate | CE/RoHS/DLC |
| Warranty Period | 5 years |
Competitive Advantage:
1. Modular design, the light efficient reach 130-150lm/W
2. The light source use 150M/W SAMSUNG/, the luminaire reach 150M/W
3. Non-image optics system, improves lumen output ratio
4. High efficiency driver system from Meanwell
5. Power box free tool to open, easy installation and maintenance
6. Elegant appearance, open air ventilation design, good heat dissipation function
7. “Tool free” locking design to open and close the driver compartment simply, easy installation and maintenance
8. Photocell and 0-90degree ajustable bracket available.
9. Dimmable version optional

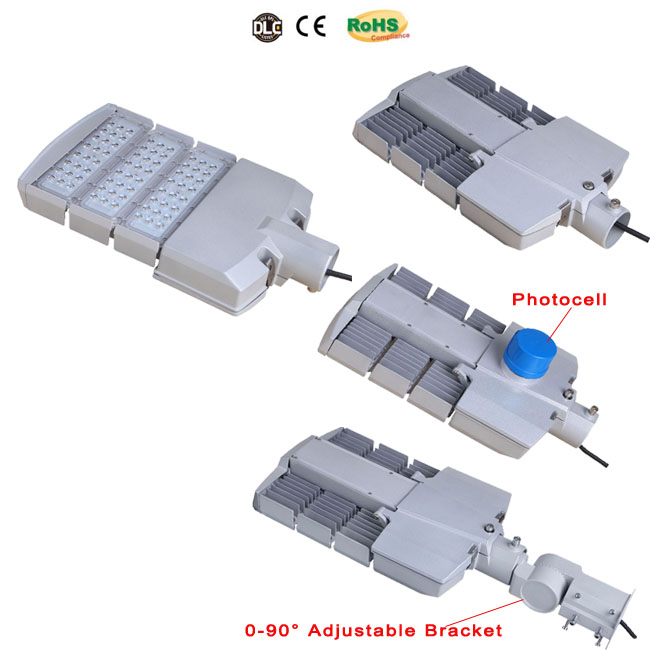

Product shows:
Applications:
Wildly use for free way, Main road, Secondary main road etc.
