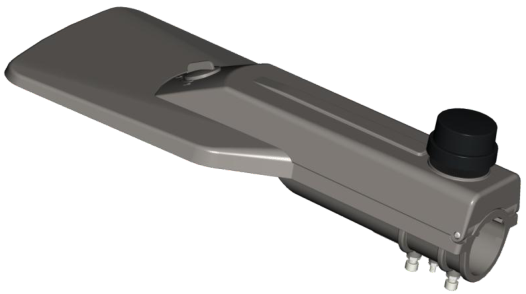

IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light
Features:
1. Excellent Heat Dissipation
2. Stylish and Classic Appearance Design
3. Multiple Beam Angles Available
4. Convenient Maintenance of Driver
5. Multiple Installation Methods
6. Tool-Free Maintenance Easy Open
7. Epoxy-Polyester Anti-corrosion Coating
Ming Feng Lighting has been committed to the research of high-quality optical light distribution. Aiming at road lighting, we have developed seven lens products with different road widths and suitable occasions, and developed four projection lamp lighting lens products and one tunnel lamp lighting lens product to meet the different lighting needs of customers.
Specifications:
| Item | MF-BYxxW |
| Input voltage | 110V,120V,230V,240V,347V ac |
| LED Power | 30W,60W,90W,120W,150W,180W,200W,240W |
| Rated Power | 30W,60W,90W,120W,150W,180W,200W,240W |
| IP Rating | IP66 |
| IK rate | IK08 |
| SPD | 10KV/20KV |
| Luminous Efficiency | 130lm/w,150lm/w |
| Color temperature | 3000K / 4000K / 5000K |
| LED Chip | Cree |
| LED Driver | Lumileds 3030/Lumileds 5050 |
| Color Rendering Index | 70/80 |
| Power Factor | >0.98 |
| Lifespan | ≥100,000hrs |
| Beam | 143*50°/156*68°/150*150°/150*75° |
| Material | Die-cast Alu.+PC+glass |
| Certificate | CE, RoHS, ENEC,UL,SAA,PSE |
| Warranty Period | 5 years/10 years conditionally |
Competitive Advantage:
*30W 丨 50W 丨 60W | 90W 丨 100W 丨 120W 丨
*150W 丨 180W 丨 200W 丨 210W 丨 240W
*Lamp body ADC12 Aluminum,Powder spraying surface treatment, corrosion resistance
*Optical lens Type II
*500H salt spray test
*LED source and driver respectively
*Open power supply chamber by top cover, knob type tools free
*Smooth back cover, easy to clean
*Applications: Widely used in main roads, highways, sidewalks,parks, squares, docks, factories and other indoor or outdoor areas.
*L80:50000H/100000H
*Efficiency :135-170lm/w
*IP66/IK08
*LED source2: 835/3030/5050 optional
CCT Range WW(3000K) NW(4000K) DW(5000K) CW(6500K)
Beam Angle:
Product Detail:
Product Drawing:
Installation Methods:
Wiring Method
Top Mounting
Application:
Highway, National road, Country road,Bicycle lanes, Sidewalks, Courtyard, High-speed rail, Standard rail...etc.
