Brand Name : MF
Model Number : MF-LTP20S-2FT
Certification : CE, RoHS
Place of Origin : China
MOQ : 10PCS
Price : USD28.5-39.5/PCS
Payment Terms : L/C, T/T
Supply Ability : 5000pcs/Month
Delivery Time : 2 weeks
Packaging Details : Standard brown carton box packing, 66*35*33cm/6pcs, N.W:7.2KG, G.W:8.0KG
Power : 20Watt/40Watt/50Watt/60Watt
Length : 2ft/4ft
Input Voltage : AC100-277V, 50/60Hz
PF : >0.9
CRI : 80Ra+
Beam Anle : 120 Deg
IP Rating : IP65
Warranty : 3 years
Lumen Efficiency : 130LM/W
Dimmable : 0-10V
Remark : No Flicker
0 - 10V Dimmable Sensor Dimming Flicker Free LED Tri Proof Lights
Optical Details:
Light Efficiency: 130LPW
CCT: 30K, 40K, 50K
Beam Angle: 120°
CRI: 80Ra+
Electrial Details:
Input Voltage; 100-277Vac
PF: ≧0.95
Dimmable: 0-10V
Power Efficancy: ≧92%
Other Details:
Ingress Protection:IP65
Lifespan: 50,000Hrs+
Storage Temperature: -40℃∽80℃
Operating Temperature: -40℃∽45℃
CCT & Watt Selectable -Standard Technical:
Model No | Power | Length | Lumens | CCT | Remark | Size |
MF-LTP20S-2FT | 20W | 2ft | 130lm/w | 3000k/4000K/5000K | No Flicker 0-10V Dimming | 600*100.7*77mm |
MF-LTP40S-4FT | 25W 30W 40W | 4ft | 130lm/w | 1200*100.7*77mm | ||
MF-LTP60S-4FT | 40W 50W 60W | 4ft | 130lm/w | 1200*100.7*77mm |

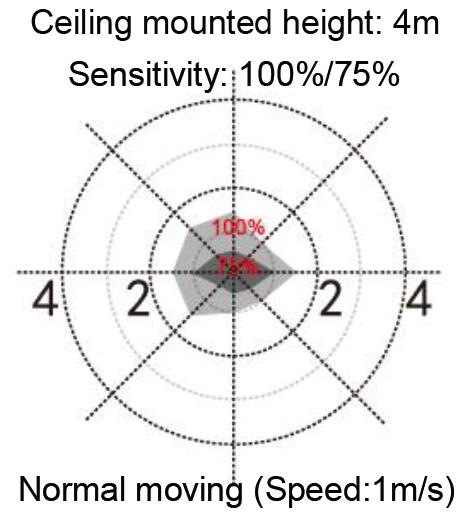

Radiation Pattern:
* Only 100% detection sensitivity is workable when installed at 4m mounting height. 25% / 50% sensitivity
is not able to detect motion signal.
Ceiling mounting Wall mounting
Ceiling mounting Wall mounting

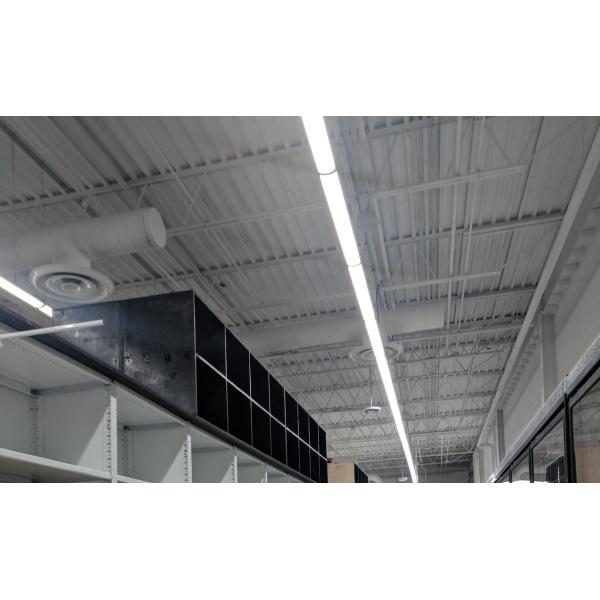

Application:
Factory lighting: Workshop, warehouse, storage rack.
Sports Center:Gymnasium,swimming pool, locker room.
Service Area: Subway, kitchen, bathroom, canteen, walkways,garage, airport service area.
![]() |
130LM/W 0 - 10V Dimmable Flicker Free LED Triproof Light Images |
