Factory Price 2in3in4in5in6in Alu. PC anti glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas
− High luminous efficacy
− Direct replacement for compact fluorescent lamp downlights
− Energy savings up to 60 % (compared to luminaires that use CFL lamps)
− Very homogenous light
− Functional design
− Easy installation with fast connection
− 3 years guarantee
Specialized design apperance
108 processes
Each layer is carefully design
Len
Reflective cup

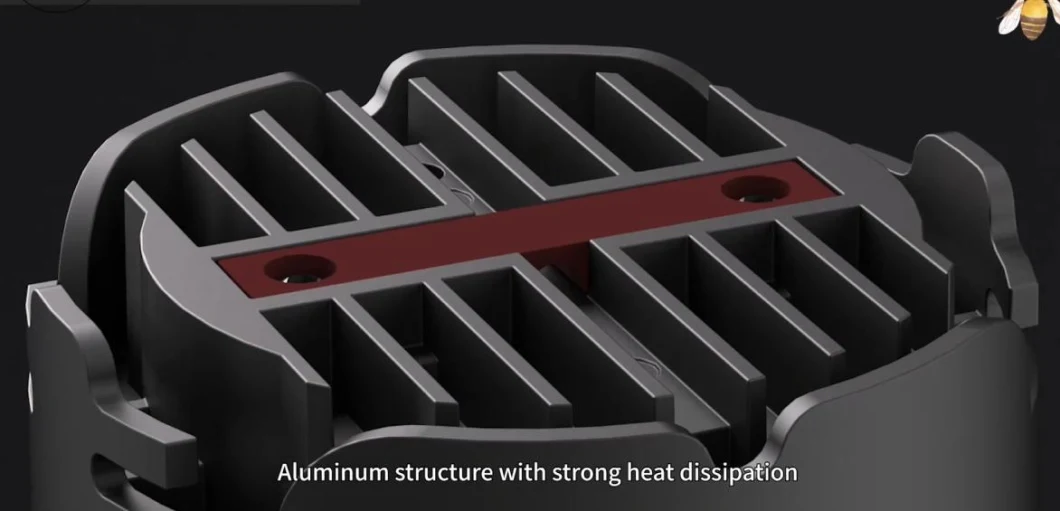

Aluminum structure with strong heat dissipation
High quality Hardware Spring

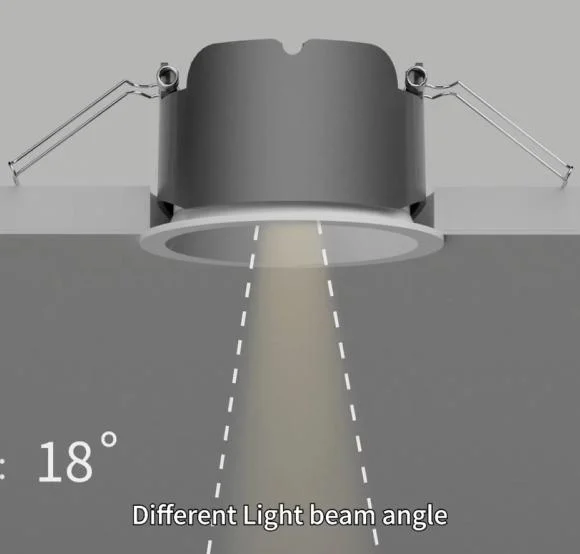

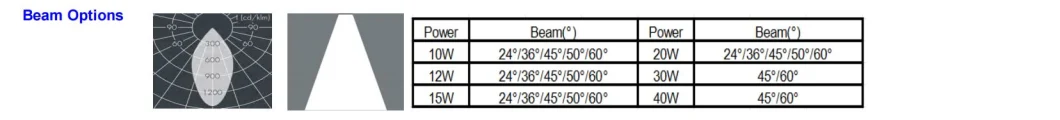

Beam angle:

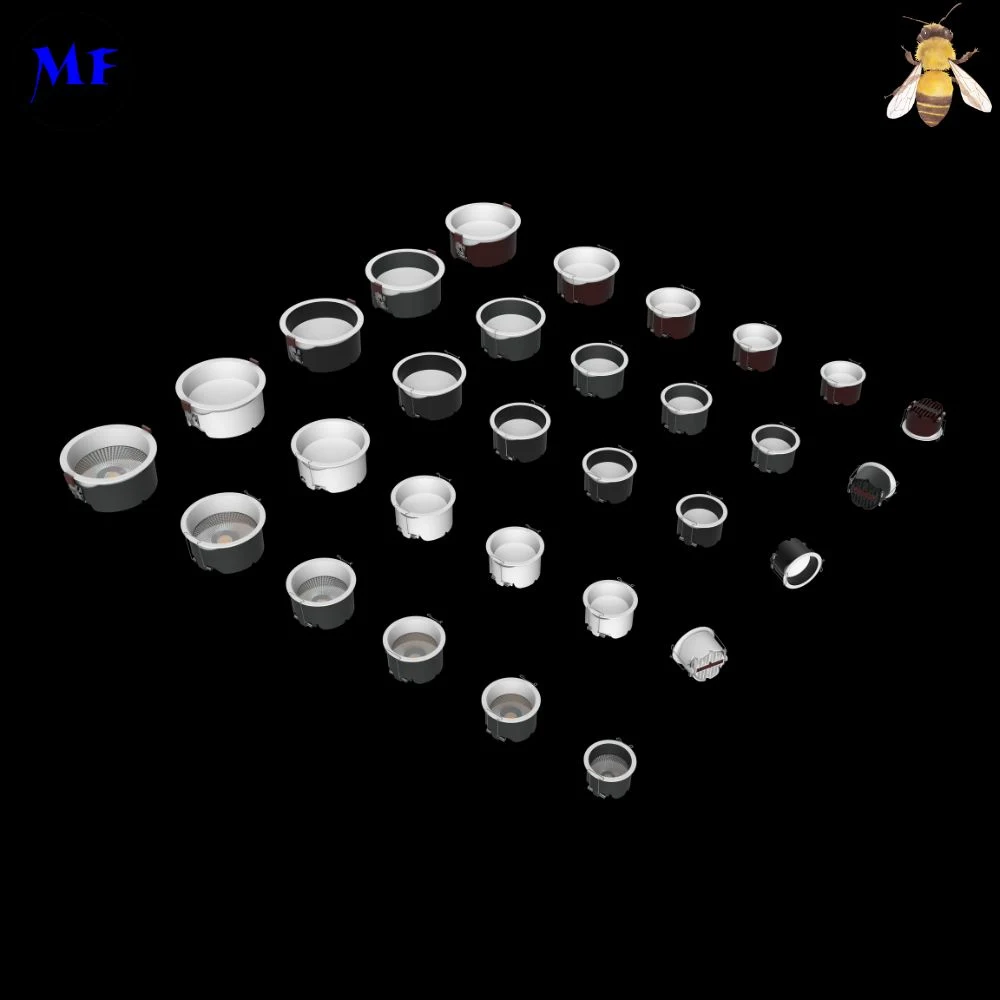

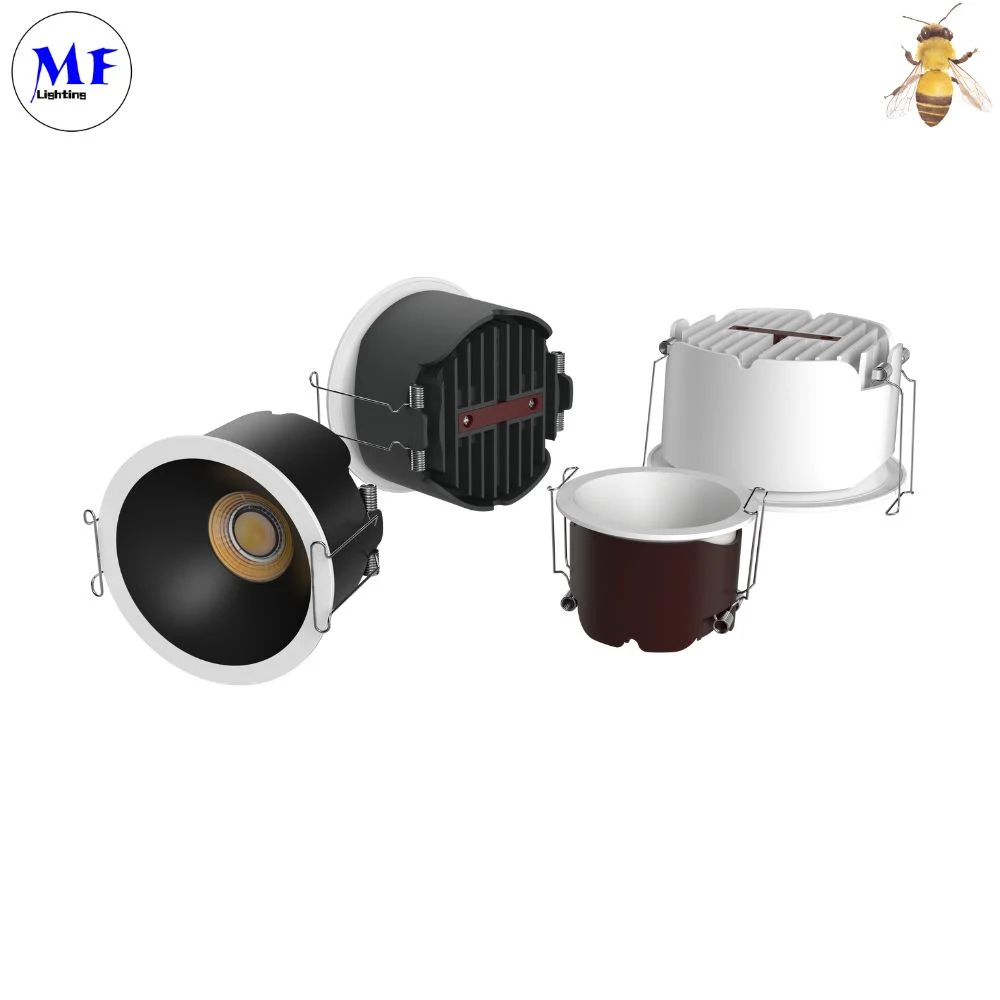

Product pictures:
Parameters
Electrical Data:
| Nominal Wattage | 10W/12W/15W/20W/30W/40W |
| Nominal Voltage | 100-240V |
| Mains Frequency | 50-60Hz |
| Nominal Current | 350,000mA |
| Power Factor λ | 0.9 |
| Protection Class | II |
| Operating Mode | Electronic Control Gear (ECG) |
Application & Mounting:
| Ambient Temperature Range | -20 °C~ 40°C |
| Type of Connection | Terminal, 2-pin |
| Type of Protection | IP40 |
| Dimmable | No |
| Mounting Type | Recessed |
| Mounting Location | Ceiling |
| Application Environment | Indoor |
| Mounting Diameter | 10W 75mm,12W 90mm,15W 100mm,20W 115mm,30W 145mm,40W 170mm |
| LED module Replaceable | Not replaceable |
| Lifespan L70/B50 at 25 °C | 30000 h1) |
| Number of Switching Cycles | 15000 |
Material & Color:
| Product Color | White Black |
| Housing Color | White Black Grey Red |
| Body Material | Aluminum |
| Mercury Content | 0.0mg |
| Diameter | 10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
| Length | 10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
| Height | 60.00 mm |
| Product Weight | 610.00g |
| Power | D(mm) | H(mm) | C(mm) |
| 10W | 82 | 53 | 75 |
| 12W | 96 | 58 | 90 |
| 15W | 106 | 63 | 100 |
| 20W | 123 | 68 | 115 |
| 30W | 155 | 76 | 145 |
| 40W | 185 | 83 | 170 |
| Luminous Flux | 10W 1000lm/12W 1200lm/15W 1500lm/20W 2000lm/30W 3000lm/40W 4000lm |
| Luminous Efficacy | 100 lm/W |
| Color Temperature | 3000K 4000K 6000K |
| Light Color (designation) | Warm White |
| CRI | ≥80 |
| Beam Angle | 24°36 °45 °50 °60 ° |
Residential Lighting: LED downlights are widely used in homes for general lighting, task lighting, and accent lighting in various areas such as living rooms, bedrooms, kitchens, and bathrooms.

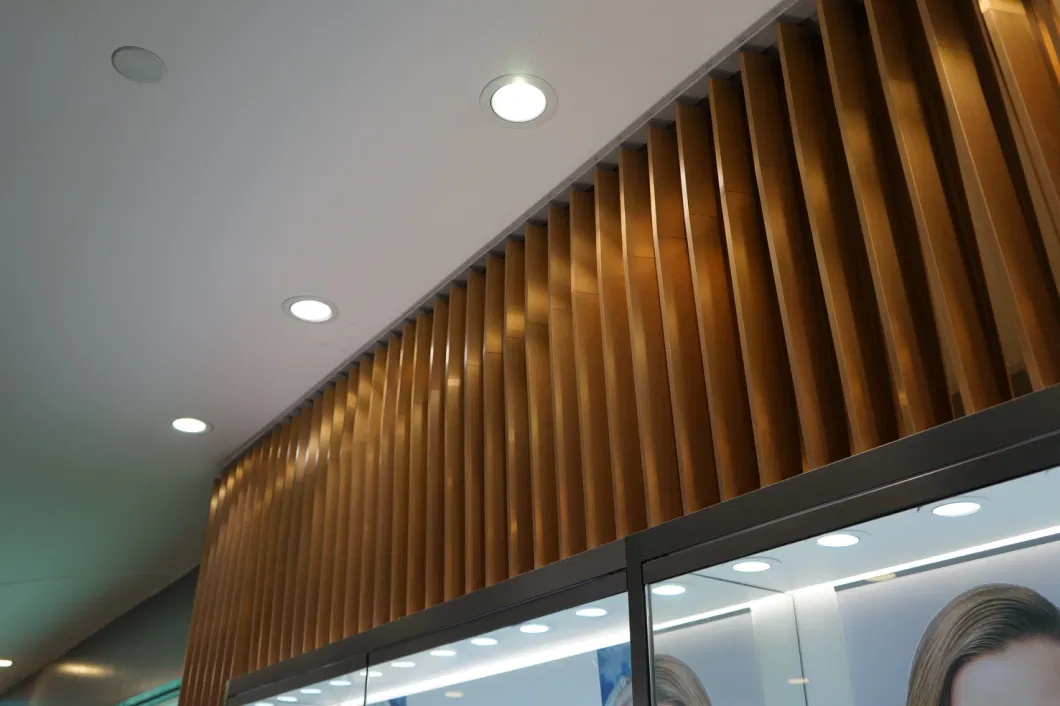

Commercial Spaces: LED downlights are commonly used in commercial spaces such as offices, conference rooms, lobbies, hallways, retail stores, restaurants, and hotels to provide efficient and visually appealing lighting.
Hospitality Industry: LED downlights are popular in the hospitality industry, including hotels, resorts, and guesthouses, as they offer an inviting ambiance and energy-saving benefits.
Retail Lighting: LED downlights are utilized in retail environments to highlight products, create focal points, and enhance the overall shopping experience by providing bright and focused illumination.
Museums and Galleries: LED downlights are preferred in museums and art galleries for their ability to accurately render colors and create dramatic lighting effects on exhibits and artwork.
Healthcare Facilities: LED downlights find application in hospitals, clinics, and medical facilities due to their long lifespan, low maintenance requirements, and ability to provide consistent and high-quality lighting for examination rooms, corridors, and waiting areas.
Educational Institutions: LED downlights are used in schools, colleges, and universities for classrooms, libraries, study areas, and other educational spaces, offering energy-efficient lighting solutions and creating a conducive learning environment.
Outdoor Lighting: LED downlights designed for outdoor use are commonly used for illuminating building facades, pathways, gardens, and outdoor recreational areas, providing both safety and aesthetic appeal.
