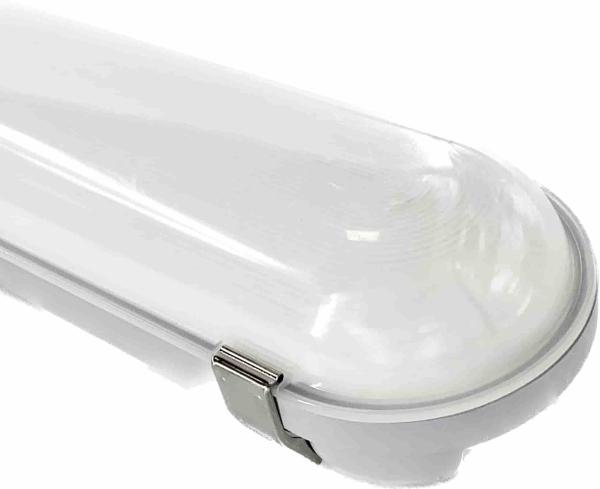

20w 40w 50w Led Parking Lot Light Fixtures Vapor Tight Lights Waterproof For Outdoor
Quick Detail:
- IP65 Tri-proof LED Light Fixture
- Input: AC 100-277V, 50/60Hz
- Luminous Flux: 140lm/w±10%
- CRI: >85
- PF: >0.95
- Lifespan: ≧50000Hrs
- IP rate: IP65
- IK rate: IK08
- Sensor: Motion sensor
Specifications:
| Model No | MF-T118/MF-T136/MF-T158 |
| Input voltage | AC100-277Vac, 50hz/60hz |
| Power(watt) | 20W/40W/50W |
| Product size(mm) | 2ft(600mm)/4ft(1200mm)/5ft(1500mm)/6ft(1800mm) |
| Color temperature | Warm White(3000K-4500K), Pure White(5000K-5500K), Cold White(6000K-6500K) |
| LED Chip | SAMSUNG |
| Base Type | G13 |
| Luminous Flux (lm) | 140LM/W±10% |
| CRI(Ra) | >85 |
| Lifespan | ≥50000hrs |
| Beam Angle | 120° |
| Material | Aluminum + PC |
| Operating Temperature | -20C ~40C |
| IK | 08 |
| IP | 65 |
| THD | ≤15%(MAX) |
| Certificate | CE/RoHS |
| Warranty Period | 5 years |
Product Characteristics
*Slotted iron Board, excellent heat dissipation.
*Driver: Osram; Meanwell or other Chinese brand options.
*IP65/IP66, IK08, and 850 degrees glow wire test requirement.
*Microwave sensor and PIR sensors, emergency kits, etc. It can be easily available and installed.
*Modular installation,save labor cost.
*Suitable for supermarket, warehouse, underground parking place, garage, productionplant, suitable for outdoor and wet location lighting application
*Radar technology automatic control induction, capture your every move in the dark.
Product Detail:
Dimension:
Clasp type:
28trips/SMD2835:
Luminous Intensity Distrbution Diagram:

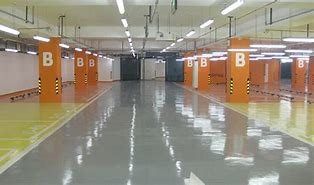

Applications: Emporium, superstore, school, factory, underground parking, passageway, hospictal, official large building and so on public place lighting.
FAQ:
Q1: Are you a manufacturer?
MF: Yes,we have our own factory with over 14 years R&D and manufacture experience base on ISO quality management since 2009.
Q2. Can I have a sample order for LED Vapor Tight Light ?
MF: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.
Q3. How about the lead time of LED Vapor Tight Light ?
MF: 3-7 days for sample order, 15-25 days for mass production order base on order quantities.
Q4: How do you ship the finished production ?
MF:By SEA, AIR or Express(DHL,UPS,Fedex,TNT,etc) are optional.
Q5: Is it OK to print my logo on LED Vapor Tight Light ?
MF:We provide OEM service to our customers, we can help to make the label and color box according to your requirements.
Q6: How to proceed an order for LED Vapor Tight Light?
MF:Firstly, please let us know your detail requirement and application environment. secondly we will recommend some suitable products and solutions to you according to your request. Thirdly, after confirm all the details, customers will issue the purchase order and make the payment to confirm, then we start for the production and arrange the shipment.
Q7: How to deal with the defective?
MF: AlI of our product are produced in strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 5 years warranty for this product, if there is any defective during the warranty, please provide the picture or video for the working situation of the defective lights, we will ship the new lights to you within a few days or send it together with your next order.
