15 Watt 800 Lm / 1200 Lm CITIZEN COB Dimmable LED Down Light IP20 For Shopping Mall

Place of Origin : China

Brand Name : MF

Certification : CE, RoHS

Model Number : MF-A01C090

MOQ : 100PCS

Price : Negotiable

Packaging Details : 138X88X98mm/1pcs, G.W: 270g

Delivery Time : Depends on orders

Payment Terms : T/T, Western Union, L/C, Paypal

Supply Ability : 10,000pcs/Month

Model No : MF-A01C090

Inpur Voltage : AC 220 -240V

Power : 12W

Luminsou Flux(lm) : 1000lm / 1200lm

LED Chip : Citizen

Dimmable : Y

Beam Angle : 24degree / 60 degree

Contact Now

15 Watt 800 Lumen / 1200 Lumen CITIZEN Chip Dimmable LED Down Light For Shopping Mall

Quick Detail:

15W COB Modular LED Down light
Input: AC 200V-240V, 50/60Hz
Luminous Flux:≧1200Lm
CRI: >85
Beam Angle: 24°,60°
LED chip: CITIZEN
Protection Against Shock: IK01
IP: 20
Dimmable: Yes

Description:

MingFeng, as a prominent China COB LED down light company, devotes himself to providing high quality COB LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.
Long LED lifespan comes from scientific thermal management. Superior material, heat sink appearance design and the thermology application, not a single one of these can be dispensed with Ming Feng Lighting utilize distinctive highly thermal conductivity material, unique multi-surface and hole designing for heat sink making the air flow fast, which fully taking away the heat and keeping the junction temperature of LED chips very low.

Specifications:

Model No:	MF-A01C090
Input voltage	200-240Vac, 50hz/60hz
Power(watt)	15W
Dimension	¢90X H95mm, Cut-size: ¢75mm
Color temperature	3000K /4000K/ 5000K
LED Chip	CITIZEN
PF	>0.92
Luminous Flux (lm)	800LM, 1200lm
CRI(Ra)	≥85
Lifespan	≥35000hrs
Beam Angle	24°,60°
Material	Aluminum Alloy
Operating Temperature	-20⁰C ~45⁰C
Dimmable	Y
IP	20
Protection Against Shock	IK01
Dimension Single Package	138x88x98mm
Weight Single Package	270g
Certificate	CE/RoHS
Warranty Period	3 years

Competitive Advantage:

High output Citizen COB LED chips
24°and 60°beam angle for option
CRI> 85
High efficient reflector (94%)
Smooth and linear dimming on most dimmers
Advanced thermal management
Life to 70% lumen maintenance- 45,000hrs
High power factor>0.92
3 years guarantee
Professional design compatible with all types of MingFeng mounted ring, and conventional MR16 fitting with “C” clip for fixing

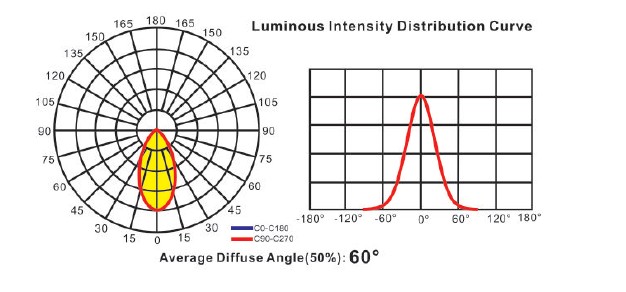

Light distrution curve:

15 Watt 800 Lm / 1200 Lm CITIZEN COB Dimmable LED Down Light IP20 For Shopping Mall

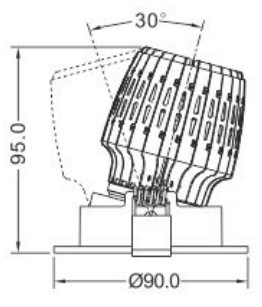

Dimension:
